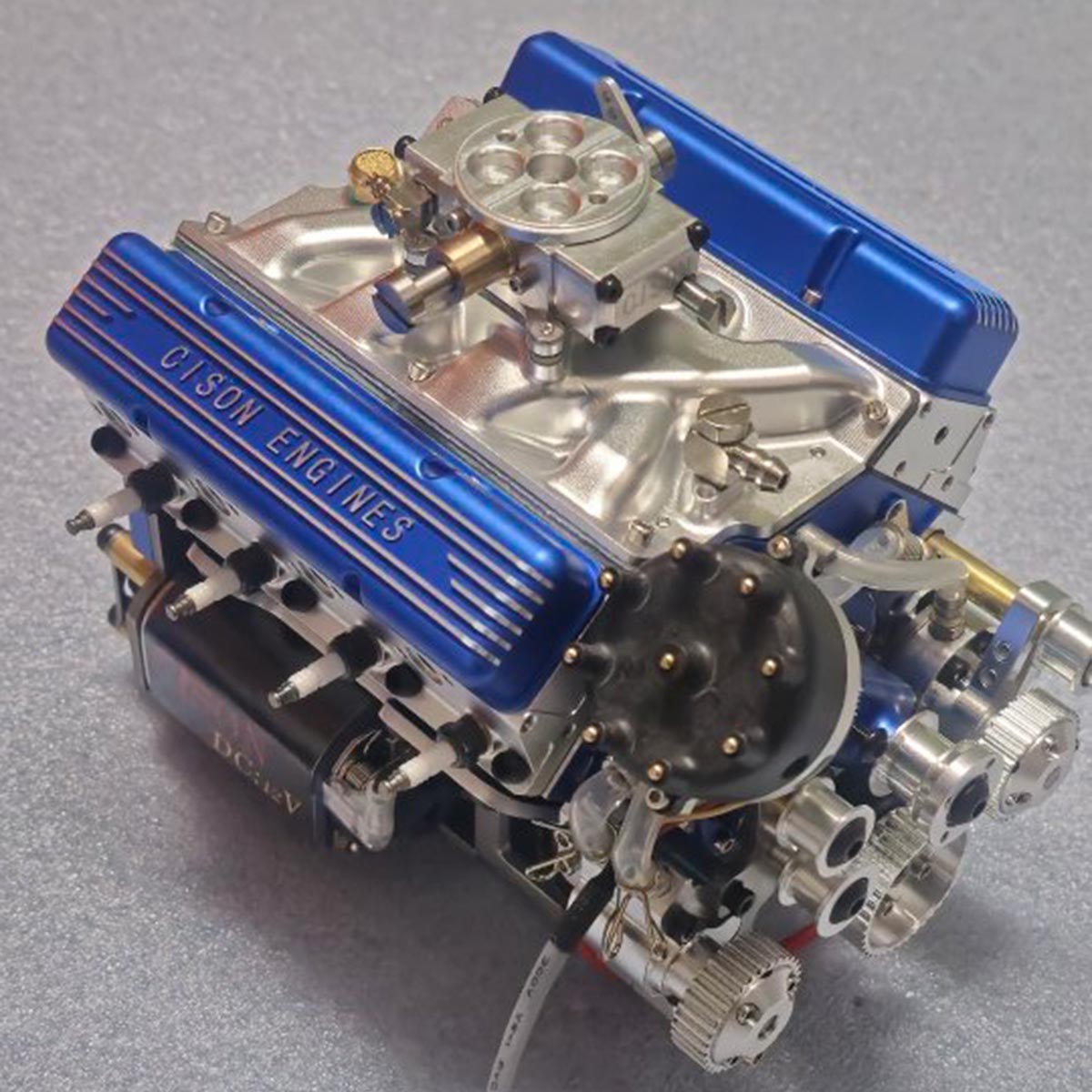

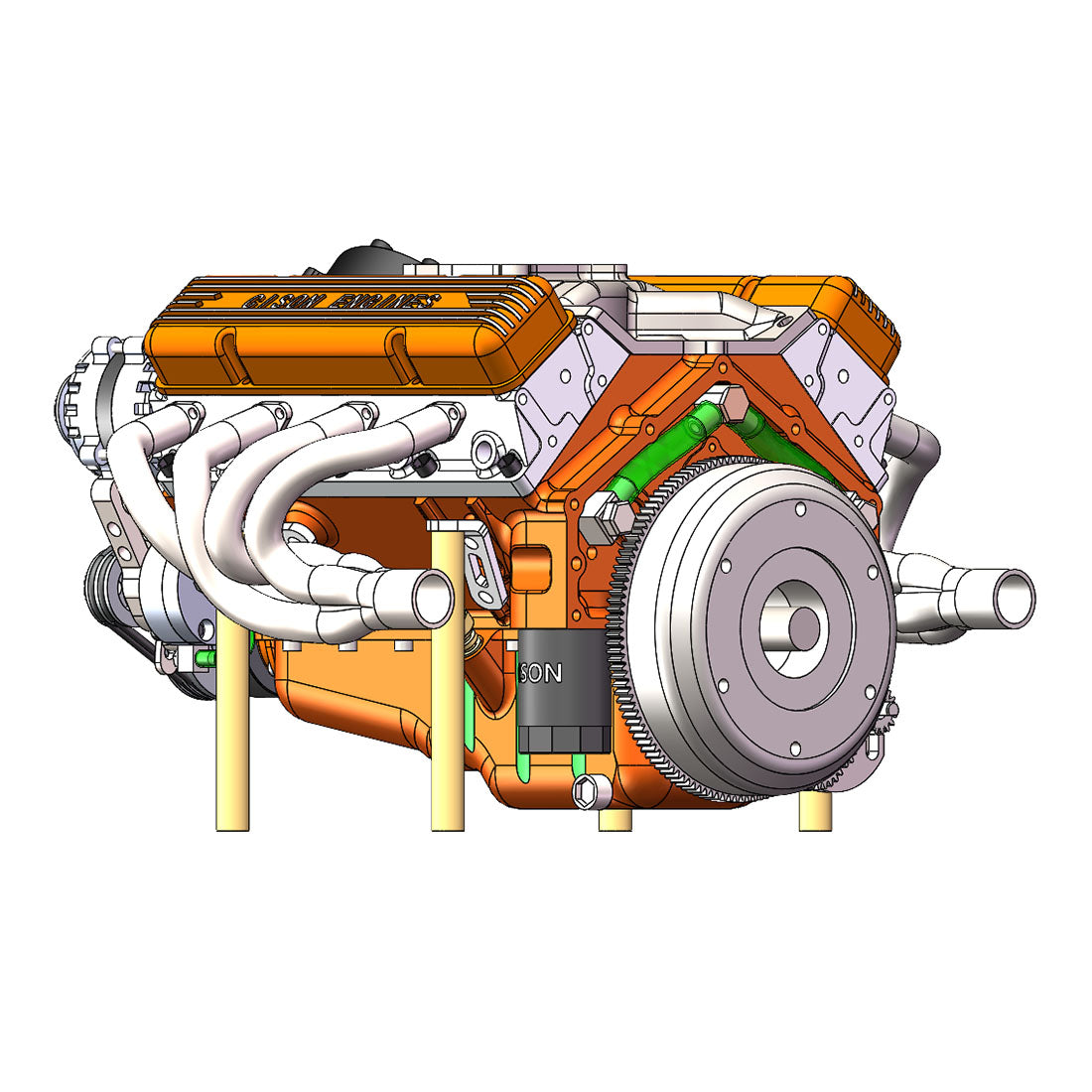

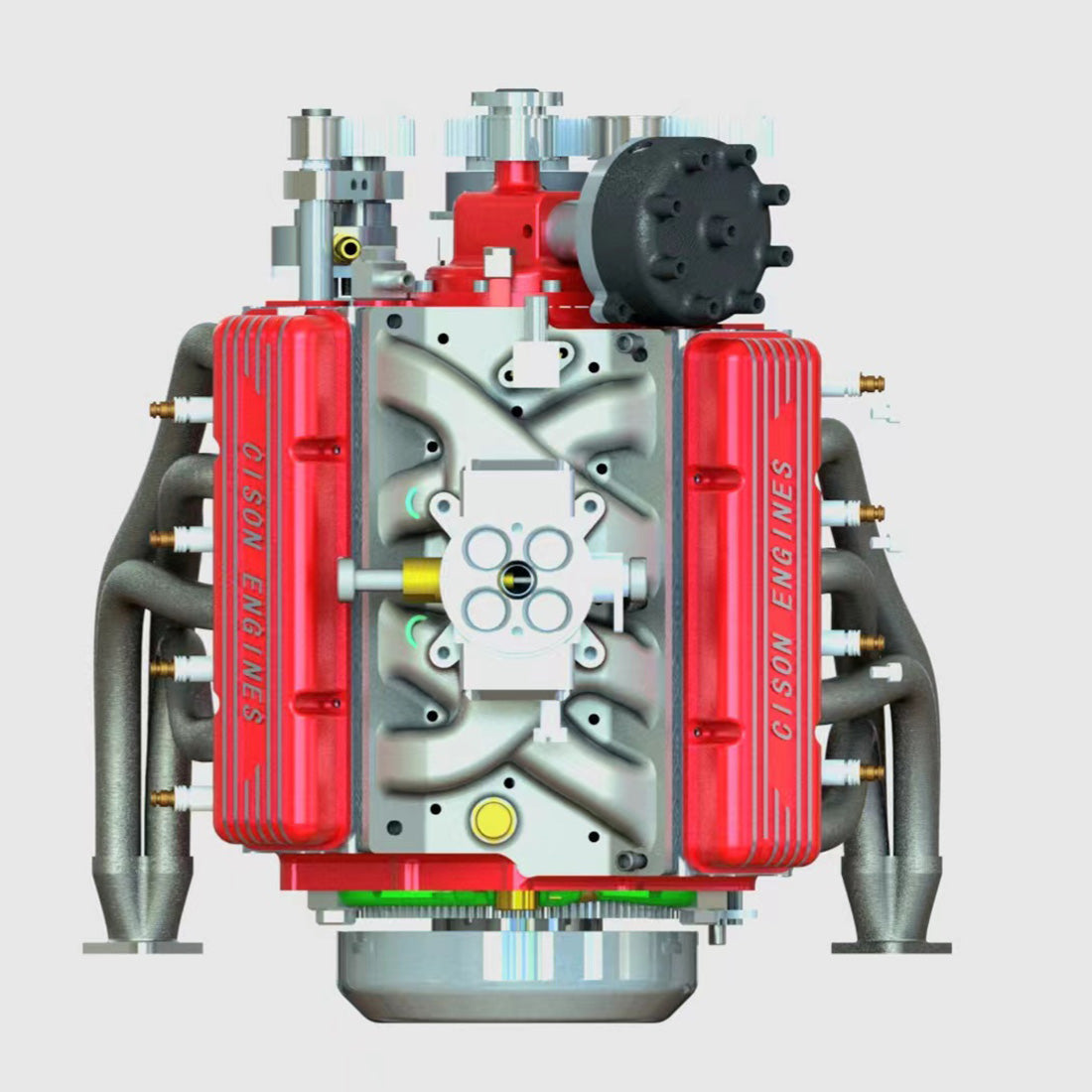

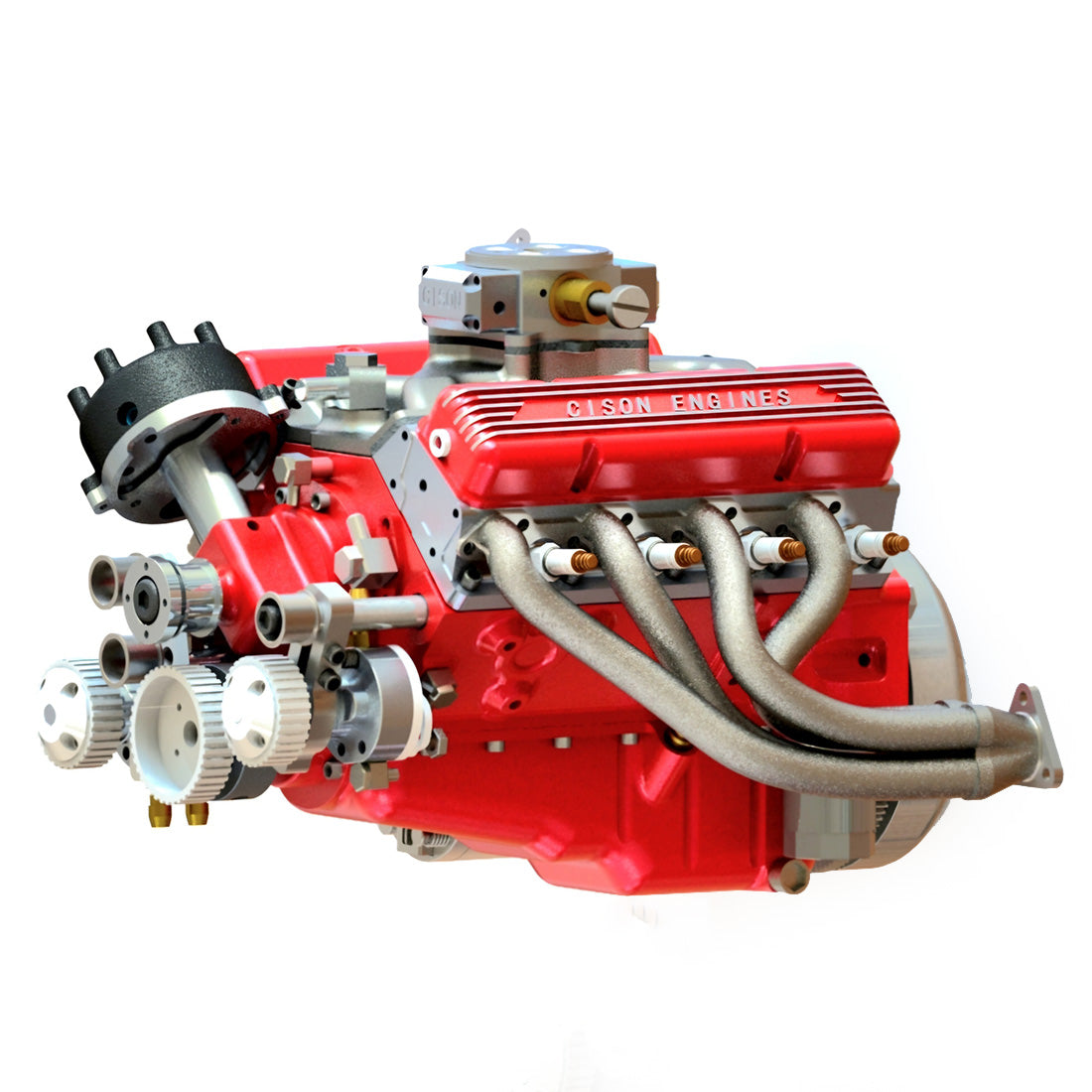

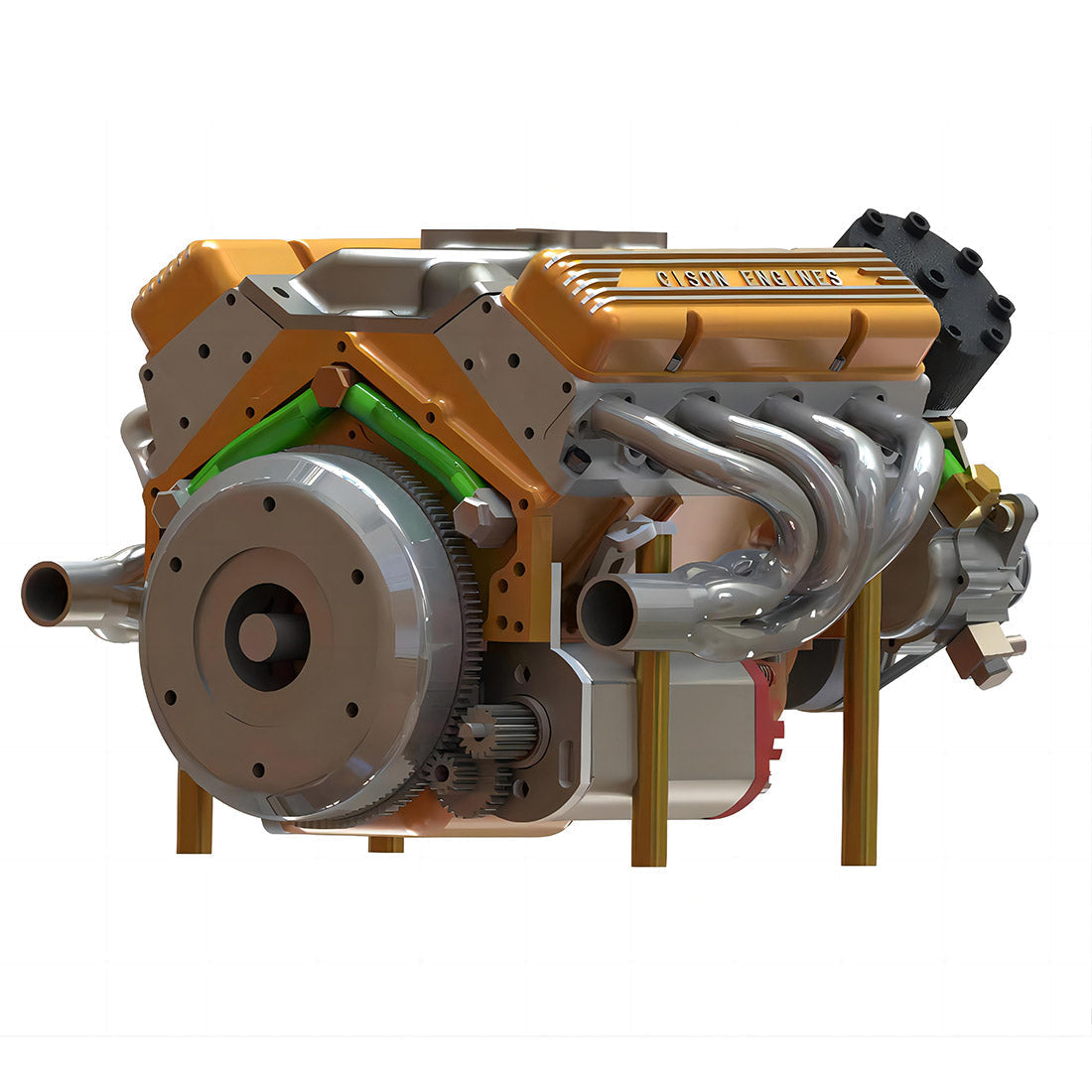

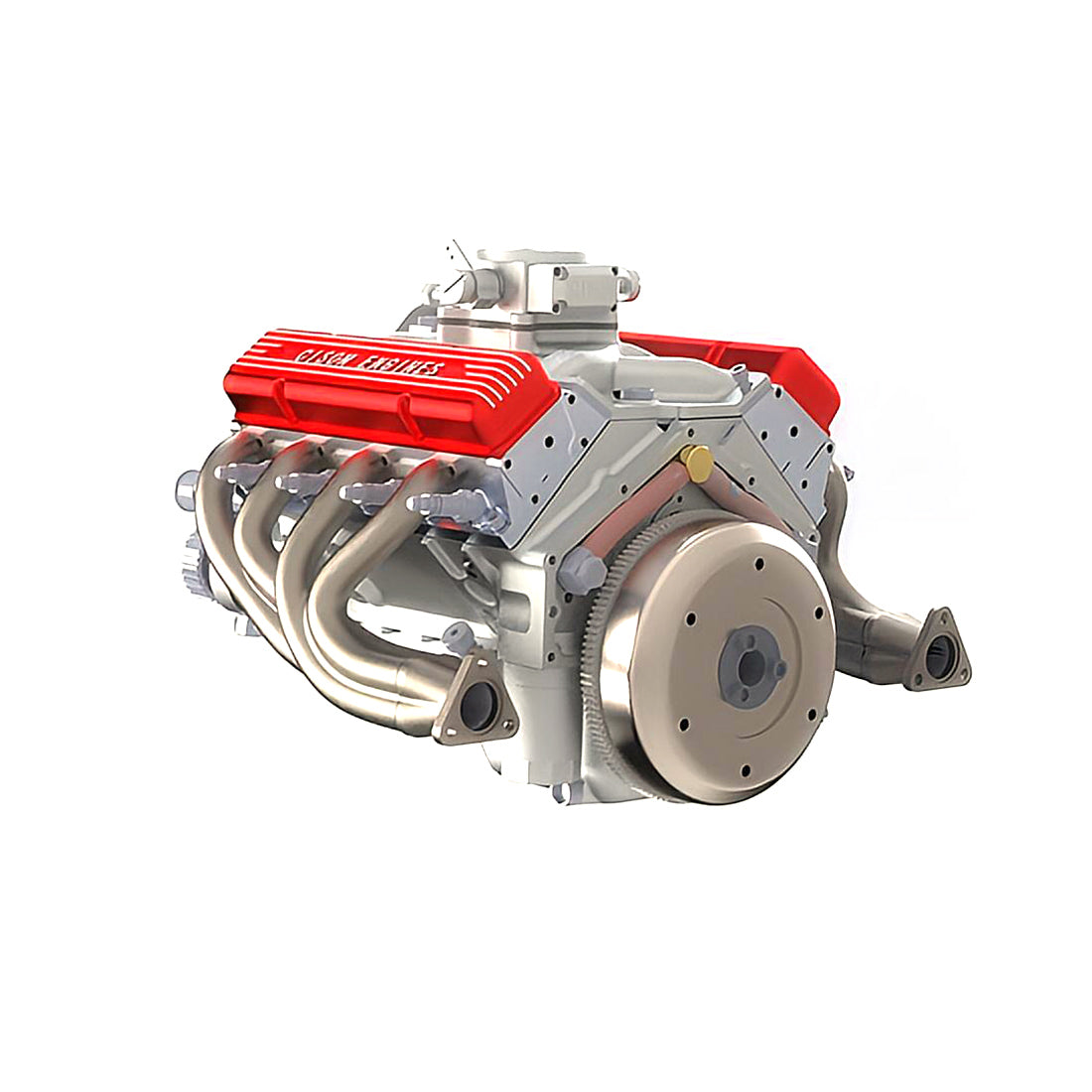

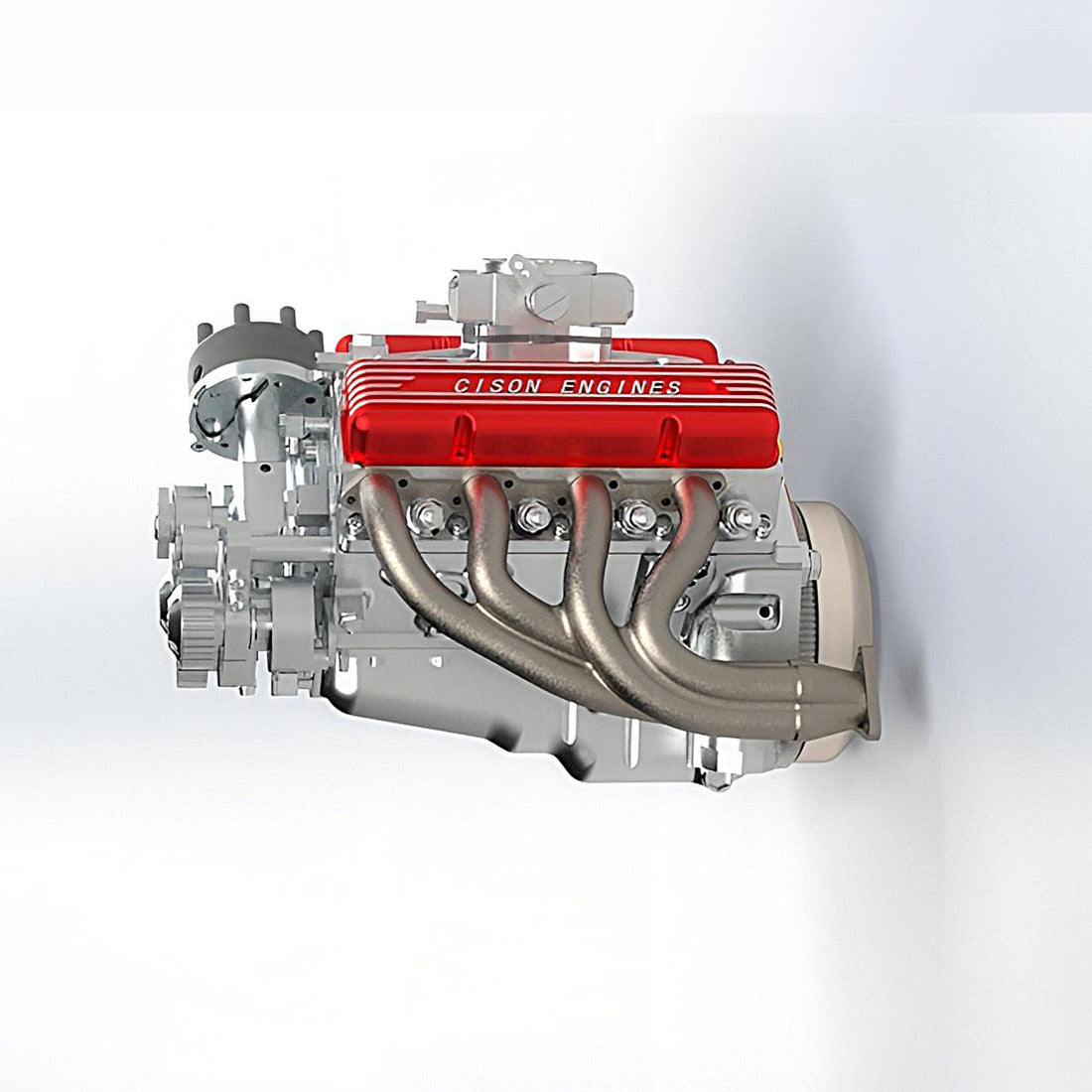

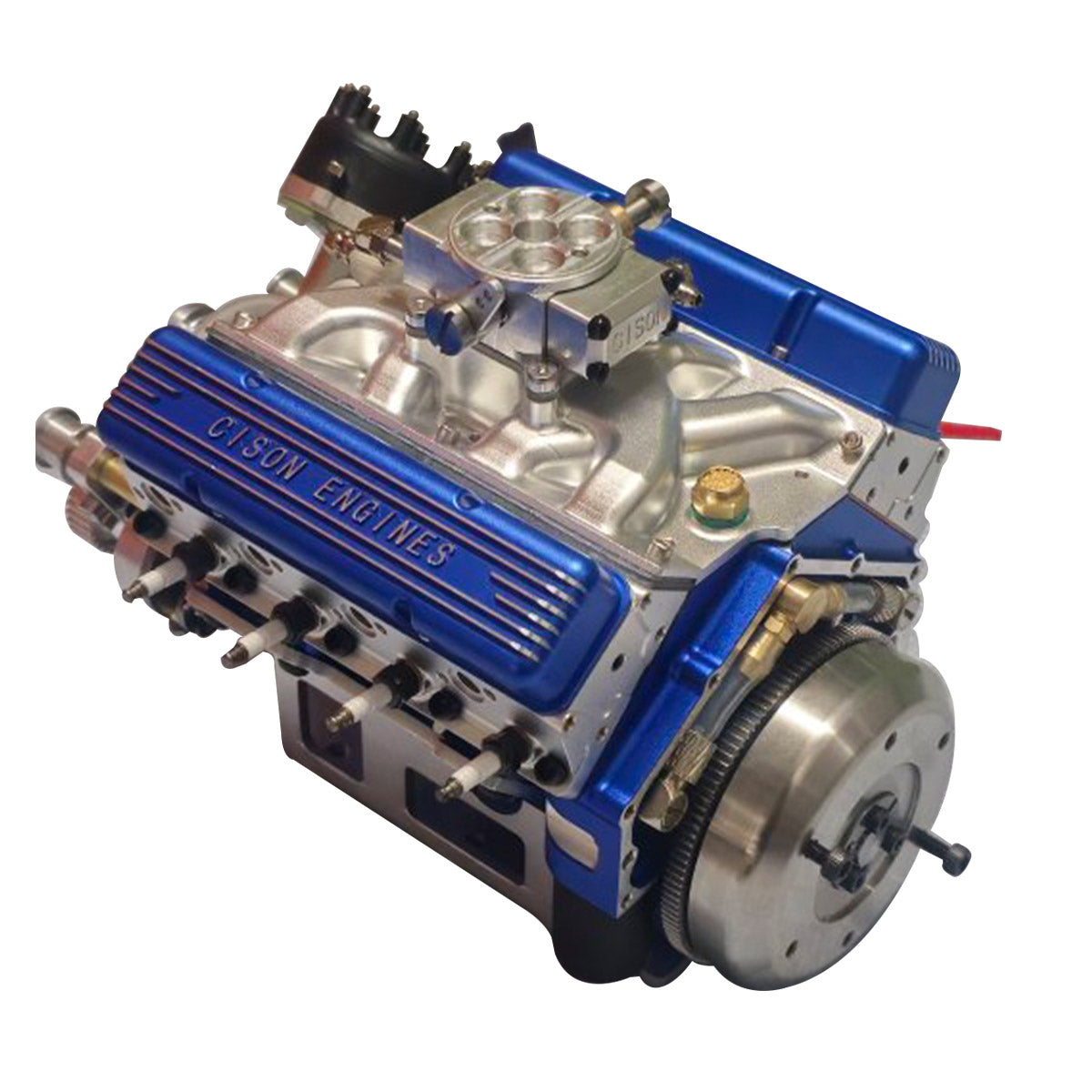

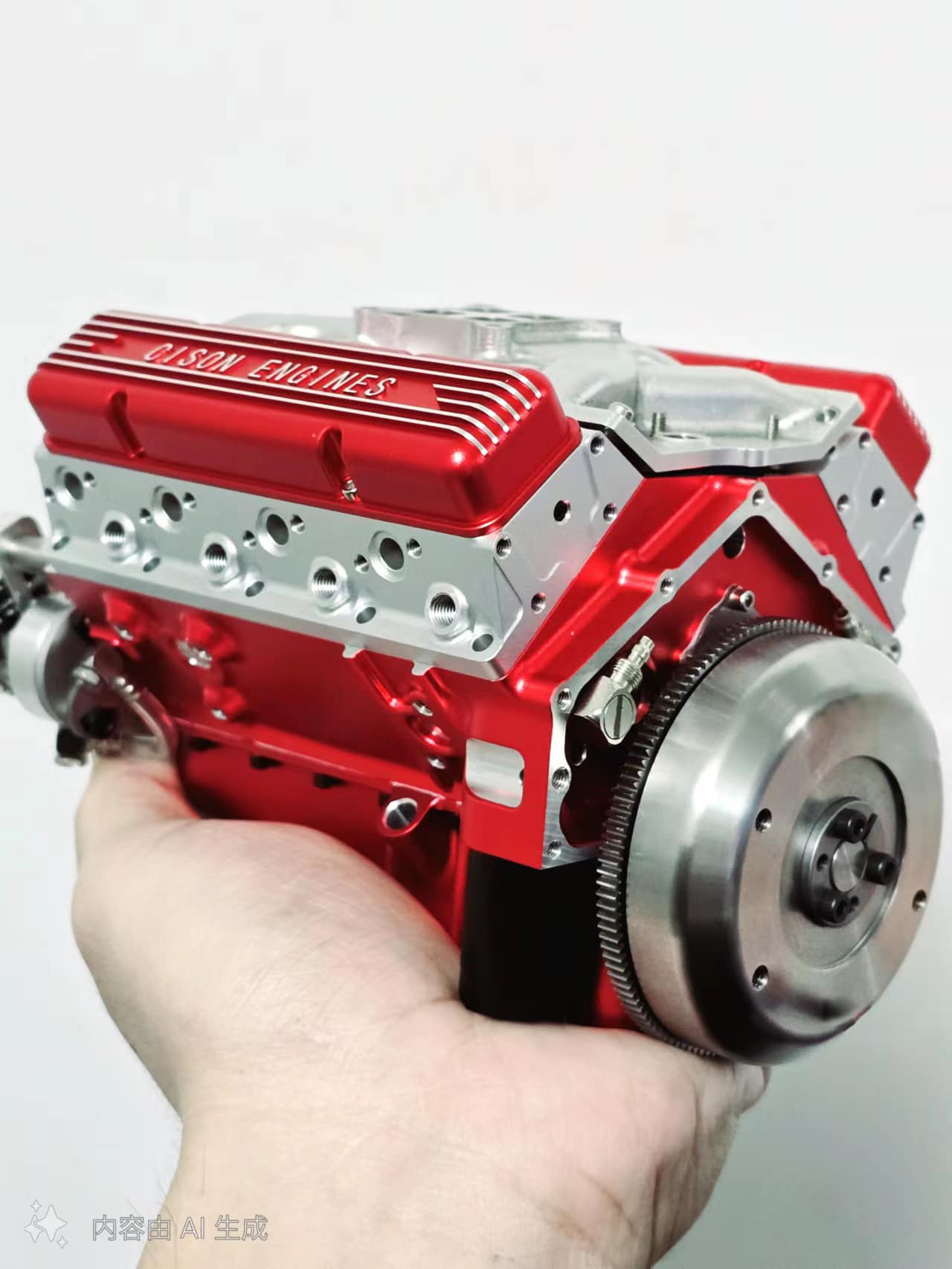

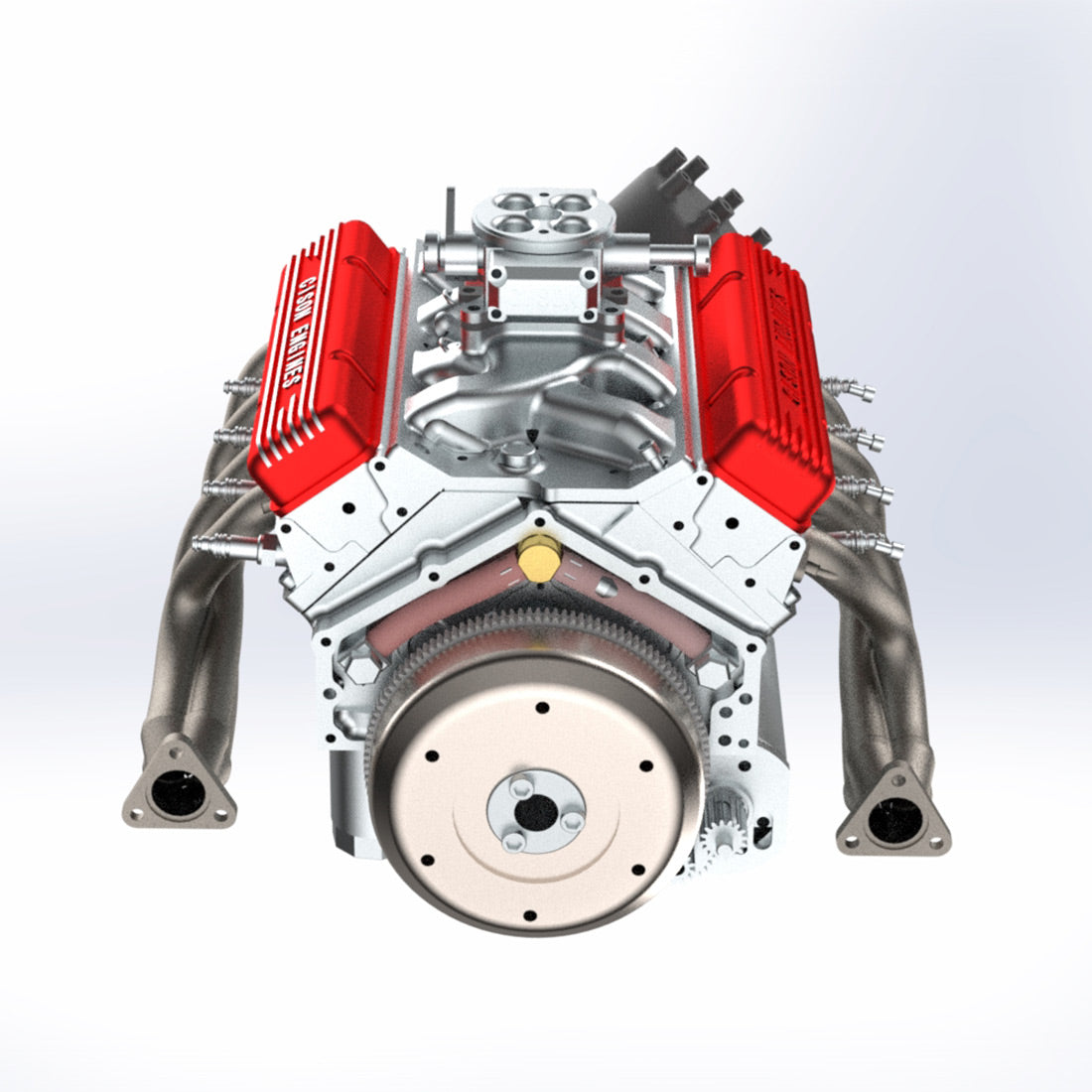

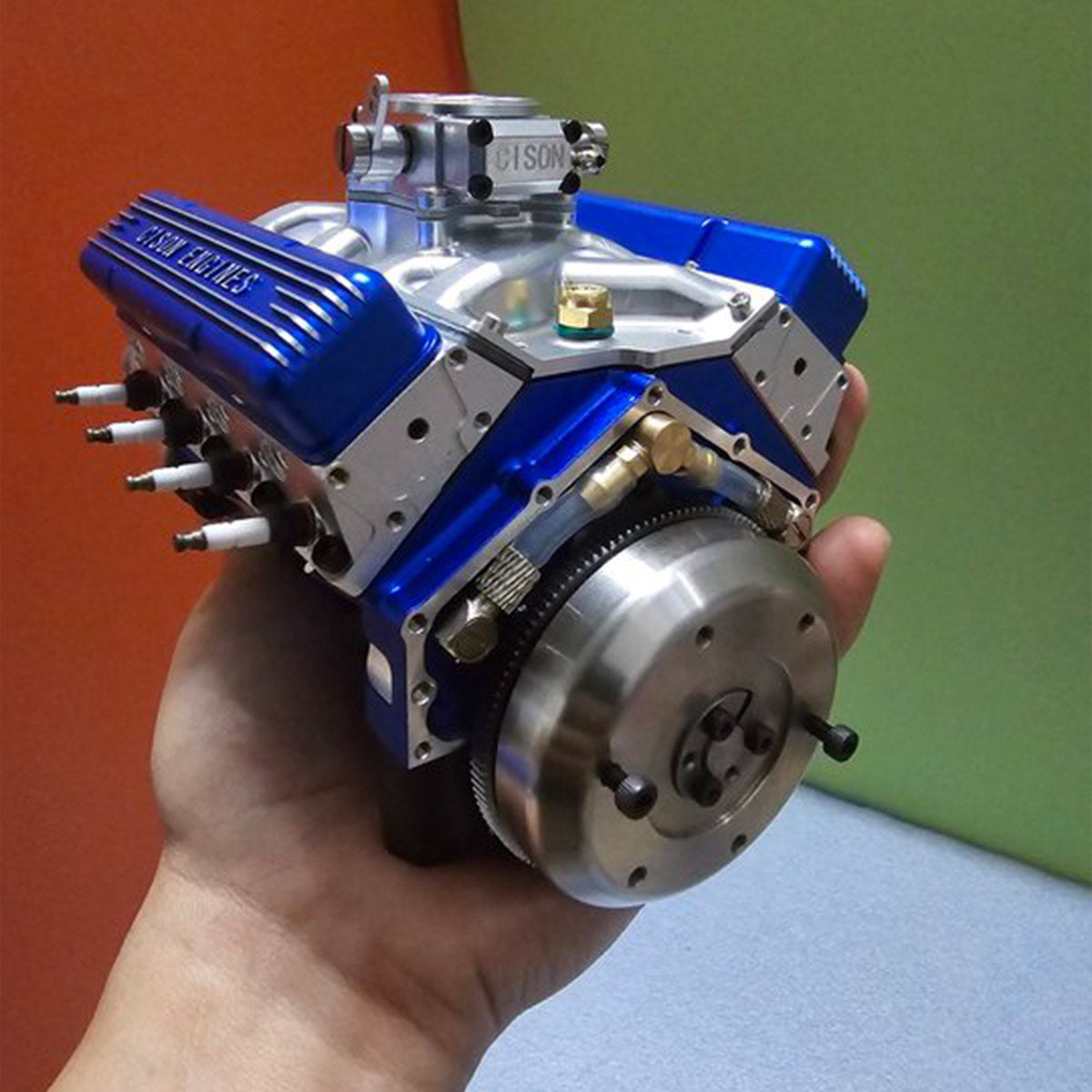

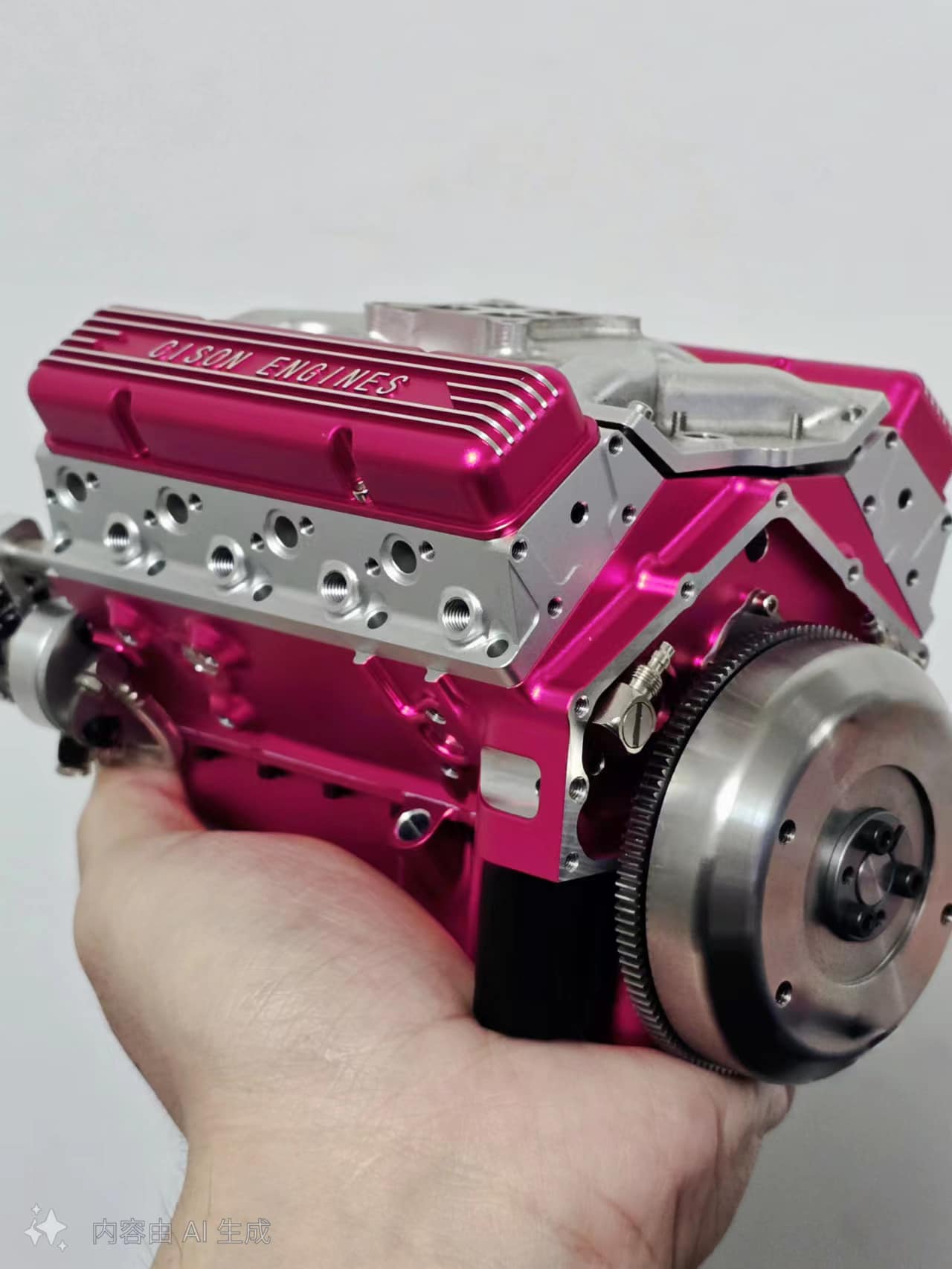

CISON Small-block V8 Engine - V8 Engine Model Kit that Works - Build Your Own V8 Engine - 44CC 1/6 Scale Water-Cooled OHV 4-Stroke V8 Gasoline Engine
Features:

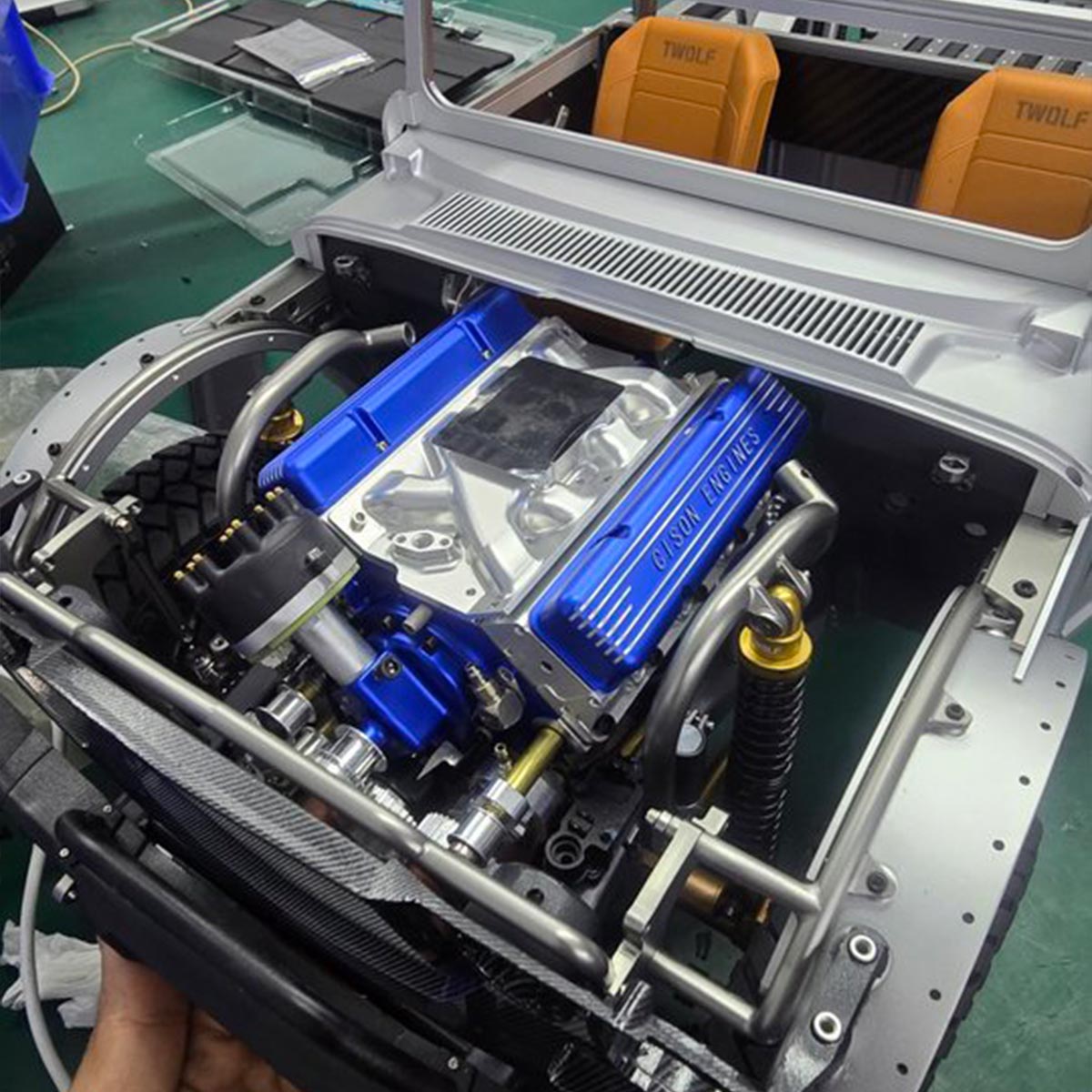

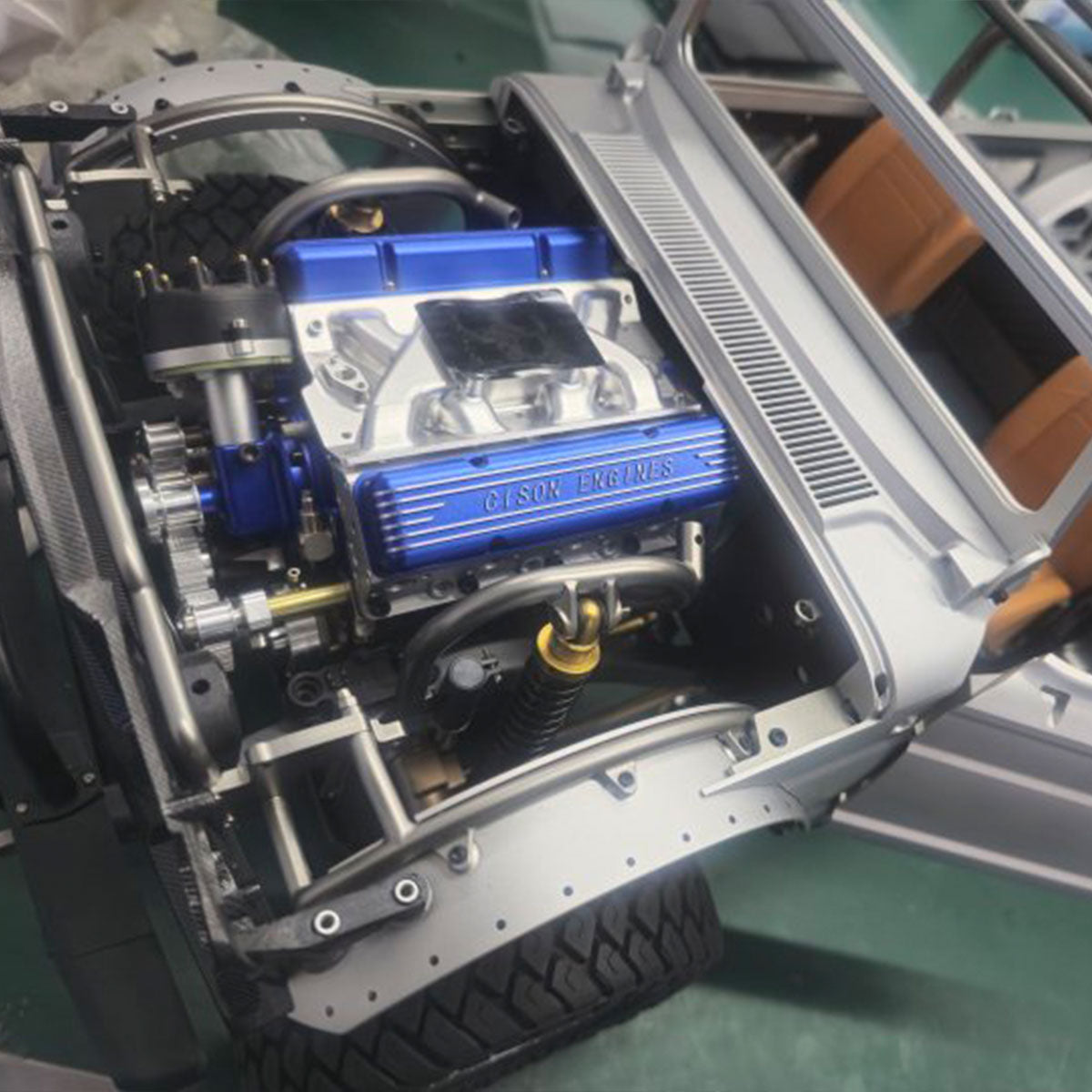

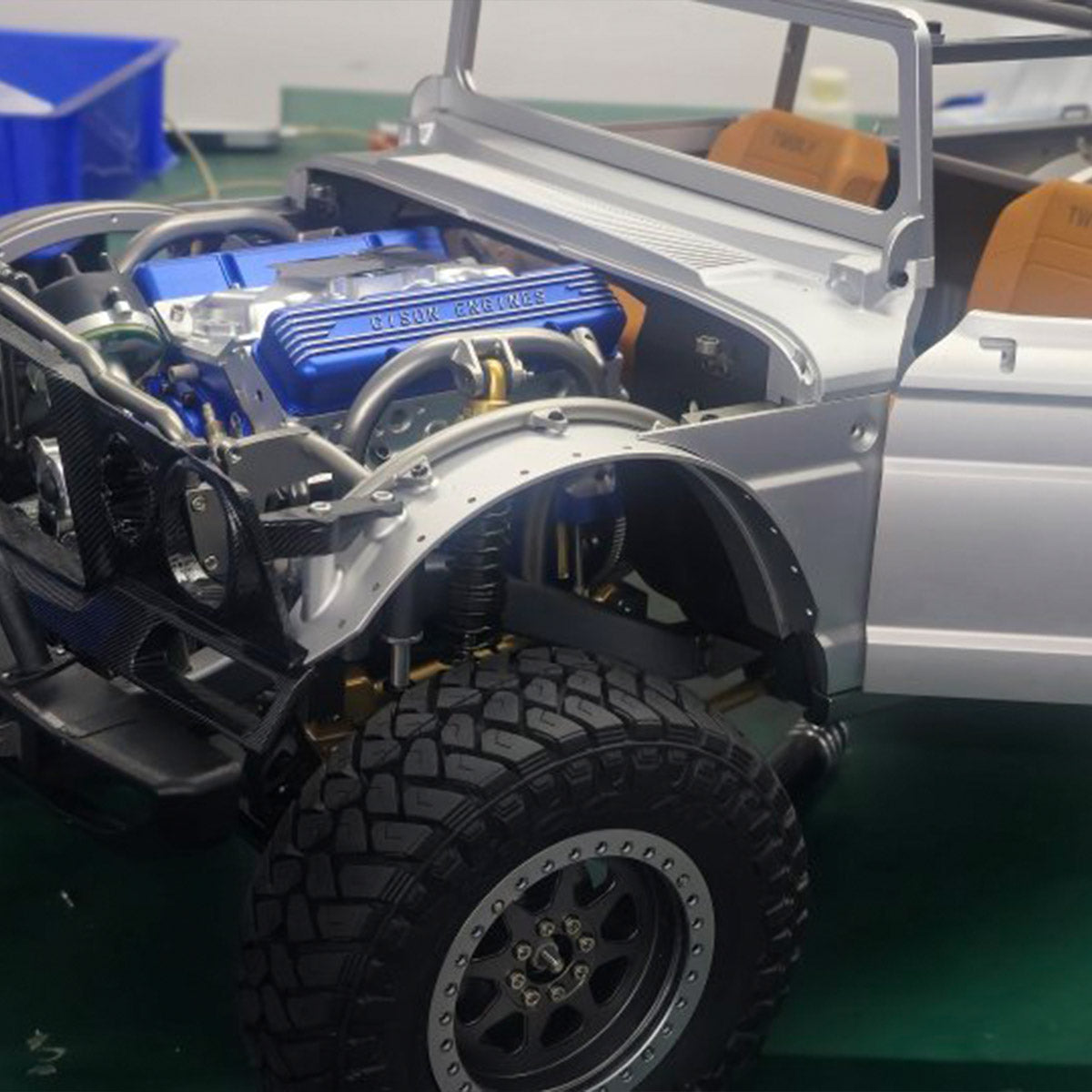

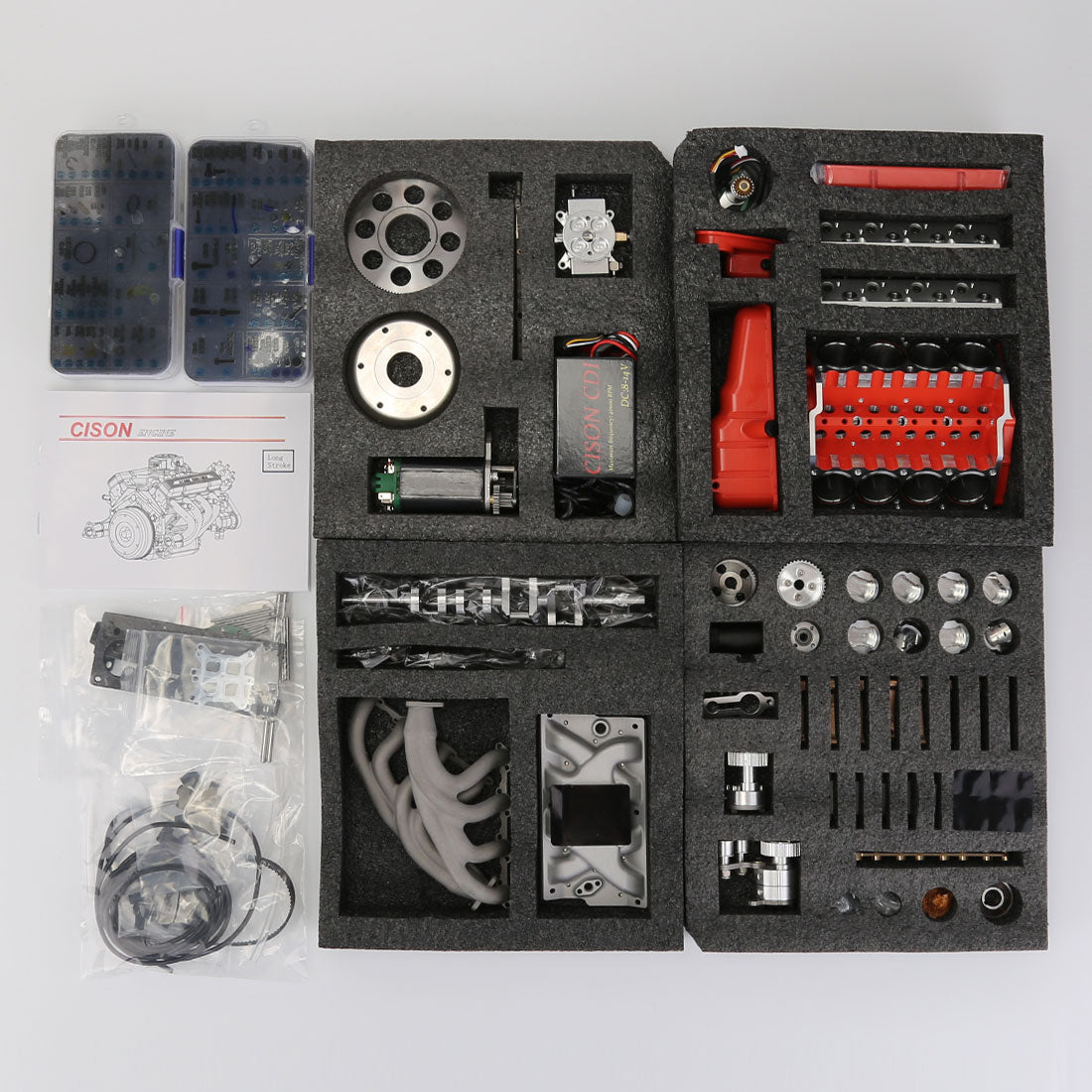

.Introduction: Following the success of CISON's single-cylinder, V2, and L4 engine models, we proudly introduce the Small-block V8, a mini beast that is set to become another classic in the world of scaled engines, impressing enthusiasts with its remarkable features. The V8-440(Flathead) design incorporates elements of the Ford V8, while the V8-440(OHV) draws inspiration from the Chevrolet V8, aiming for a highly realistic appearance. Featuring an exquisite electroplated paint in orange, high-stroke and 4-point supported camshaft, larger intake valves compared to exhaust valves, a 5-point supported crankshaft, reinforced and hardened connecting rods, optional dual cast iron piston rings, independent lubrication system, and a double-layer gear pump water pump, among other features. It's not just a roaring beast on your desk but also a "powerhouse" compatible with RC models, providing enhanced torque and power output. .DIY Fun: Crafted with high-precision parts, easy-to-follow assembly instructions for a deep understanding of engine structure and mechanical principles. .Highly Realistic: Adopt exquisite electroplated paint for a lifelike engine appearance, suitable for real fuel operation, and provides a location for optional generator installation. .Precision Manufacturing: The cylinder is precision machined with 5-axis CNC, repeatability within 0.005mm for better assembly accuracy. .Long Stroke: High-angle, high-hardness wear-resistant camshaft, 4-point supported camshaft, larger intake valve, unaffected by temperature changes with low-temperature intake pipe. .Crankshaft and Connecting Rods: Reinforced and hardened wear-resistant connecting rods, optional dual cast iron piston rings (oil rings are optional), 5-point supported crankshaft for increased high-speed operational strength and stability. .Durable Operation: Equipped with a double-layer gear pump water pump, independent lubrication system, and reserved oil filter installation position. This model in the OHV version can be combined with a rocker arm forced lubrication system with rocker arm lubricant returning to the cylinder block holes, and oil sump with an oil level gauge. .Creative Gift: The assembled model is perfect as a collectible desktop engine model or be installed in RC models, as well as a premium model holiday gift.
Specifications:

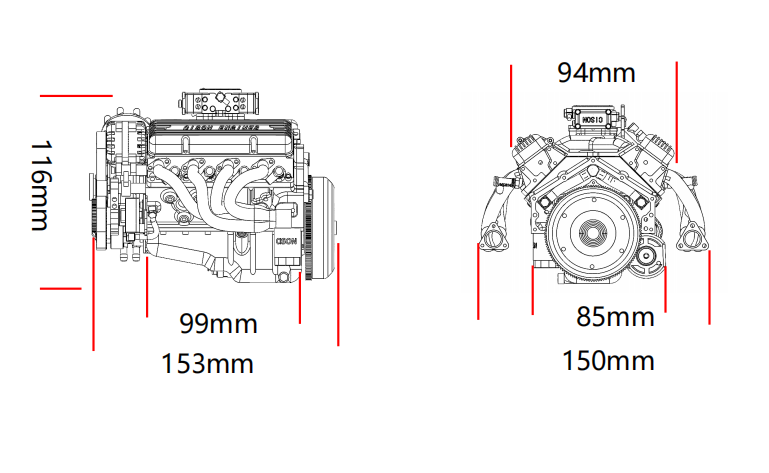

.Material: Metal .Brand: CISON .Model: V8-440(OHV) .Name: Small-block .Type: KIT Version .Engine Type: Gasoline Internal Combustion Engine .Valve Mechanism Type: OHV .Displacement: 44CC (8*5.5CC) .Cylinders: V8 .Stroke: 4-Stroke .Bore Diameter: 18.5mm .Stroke Length: 20.5mm .RPM Range: 1500-10000rpm .Power: Approx. 4.8hp .Cooling Method: Water-Cooled .Lubrication Method: Independent Lubrication System .Start Method: Electric Start .Ignition Method: Distributor Ignition (High-Performance CDI Ignition, Frequency 42000) .Spark Plug Type: 1/4-32 ME8 Type Spark Plug .Starting Power Source: 6-12V (Recommended 2S-3S Lipo Battery) .Fuel Type: Gasoline (Recommended 92# and Above Gasoline) .Lubricating Oil Type: 2T Engine Oil (Recommended 10W50 2T Engine Oil) .Product Weight: 1700g .Product Dimensions: 14 x 9.3 x 10cm .Package Dimensions: 30 x 20 x 20cm .Package Weight: 2500g .Packing: Gift Box .Ages: 16+
